Running Examples

Guido includes several examples that demonstrate different features. Clone the repository and run them to see the library in action.

Getting the Examples

git clone https://github.com/zibo/guido.git
cd guido

Running an Example

cargo run --example <example_name>

Available Examples

status_bar

A simple status bar demonstrating basic layout and containers.

cargo run --example status_bar

Features demonstrated:

• Horizontal flex layout with SpaceBetween alignment
• Container backgrounds and corner radius
• Text widgets

reactive_example

Interactive example showing the reactive system.

cargo run --example reactive_example

Features demonstrated:

• Signals and reactive text
• Click handlers with on_click
• Scroll handlers with on_scroll
• Background thread updates
• State layer hover effects
• Borders and gradients

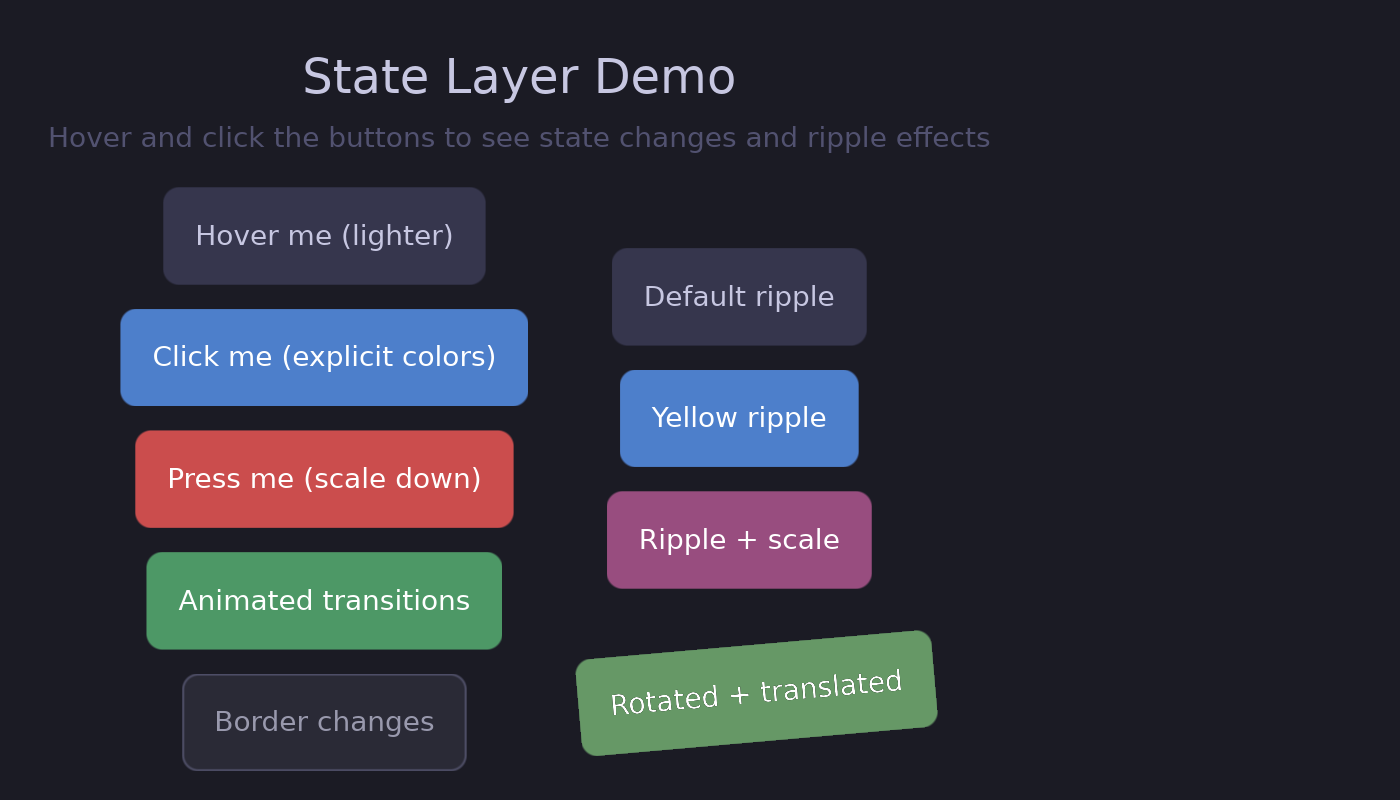

state_layer_example

Comprehensive demonstration of the state layer API.

cargo run --example state_layer_example

Features demonstrated:

• Hover states with lighter() and explicit colors
• Pressed states with transforms
• Animated transitions
• Border animations
• Ripple effects (default, colored, with scale)
• Transformed containers with ripples

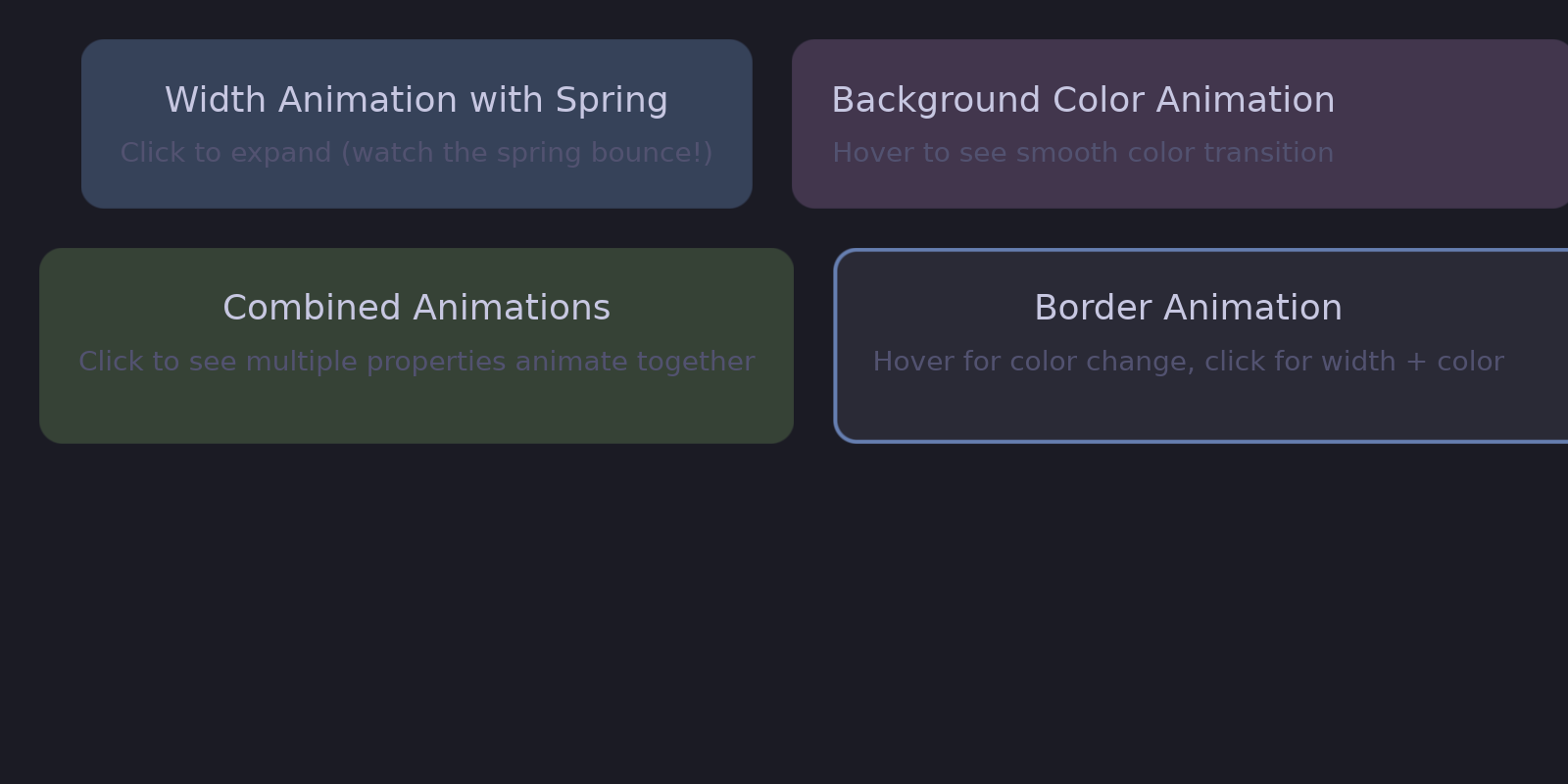

animation_example

Animated properties with spring physics.

cargo run --example animation_example

Features demonstrated:

• Width animation with spring physics
• Color animation with easing
• Combined animations
• Border animation

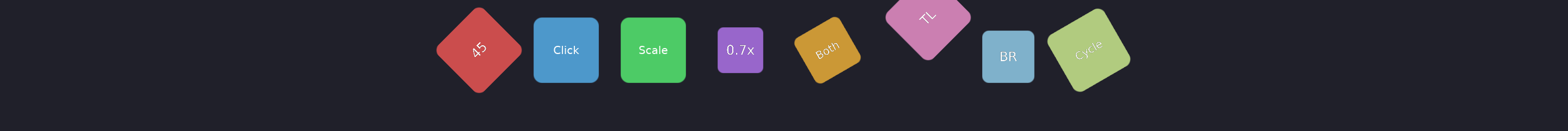

transform_example

The 2D transform system.

cargo run --example transform_example

Features demonstrated:

• Static rotation and scale
• Click-to-rotate with animation
• Spring-based scale animation
• Transform origins (pivot points)
• Nested transforms

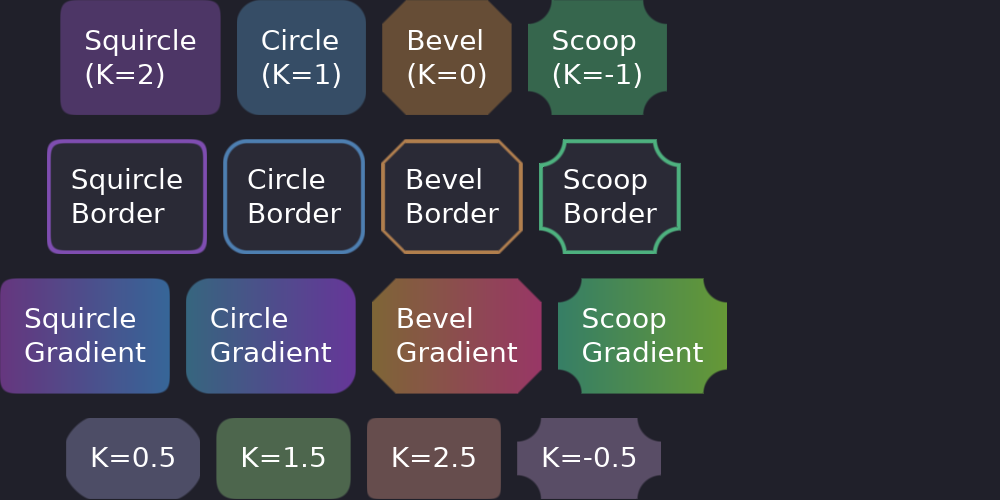

showcase

Corner curvature variations using superellipse rendering.

cargo run --example showcase

Features demonstrated:

• Squircle corners (iOS-style, K=2)
• Circular corners (default, K=1)
• Beveled corners (K=0)
• Scooped/concave corners (K=-1)
• Borders and gradients with different curvatures

flex_layout_test

All flex layout alignment options.

cargo run --example flex_layout_test

Features demonstrated:

• MainAlignment: Start, Center, End, SpaceBetween, SpaceAround, SpaceEvenly
• CrossAlignment: Start, Center, End, Stretch
• Row and column layouts

baseline_alignment

The four cross alignments on the same row, so the difference is visible.

cargo run --example baseline_alignment

Features demonstrated:

• CrossAlignment::Baseline: text of different sizes reading as one line
• The pair worth comparing is End and Baseline — one aligns the boxes, the other the line the text is written on
• A box carries no baseline, so it aligns by its bottom edge

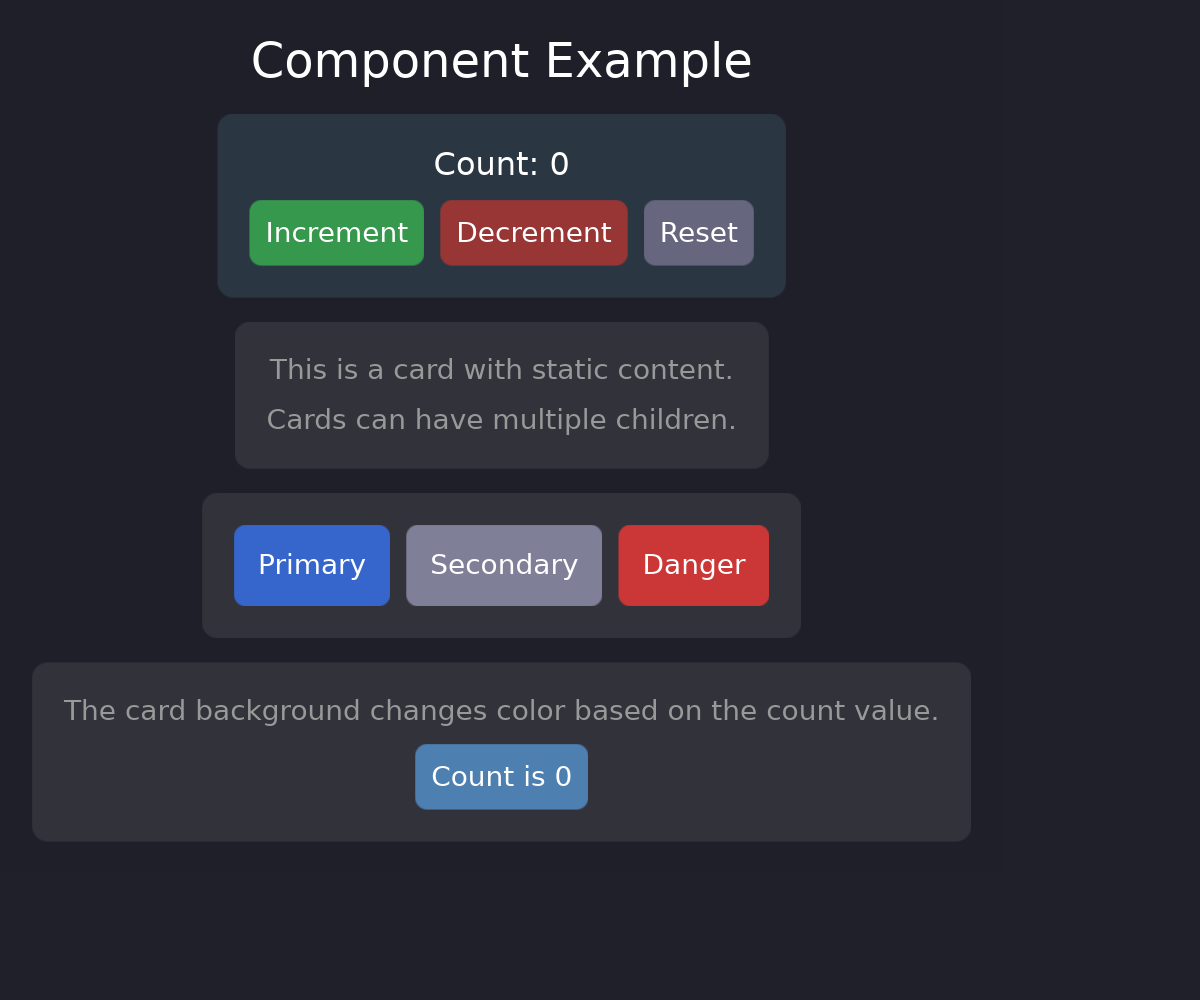

component_example

Creating reusable components with the #[component] macro.

cargo run --example component_example

Features demonstrated:

• #[component] macro for reusable widgets
• Component props and signals
• Stateful components with internal signals
• Composition of components

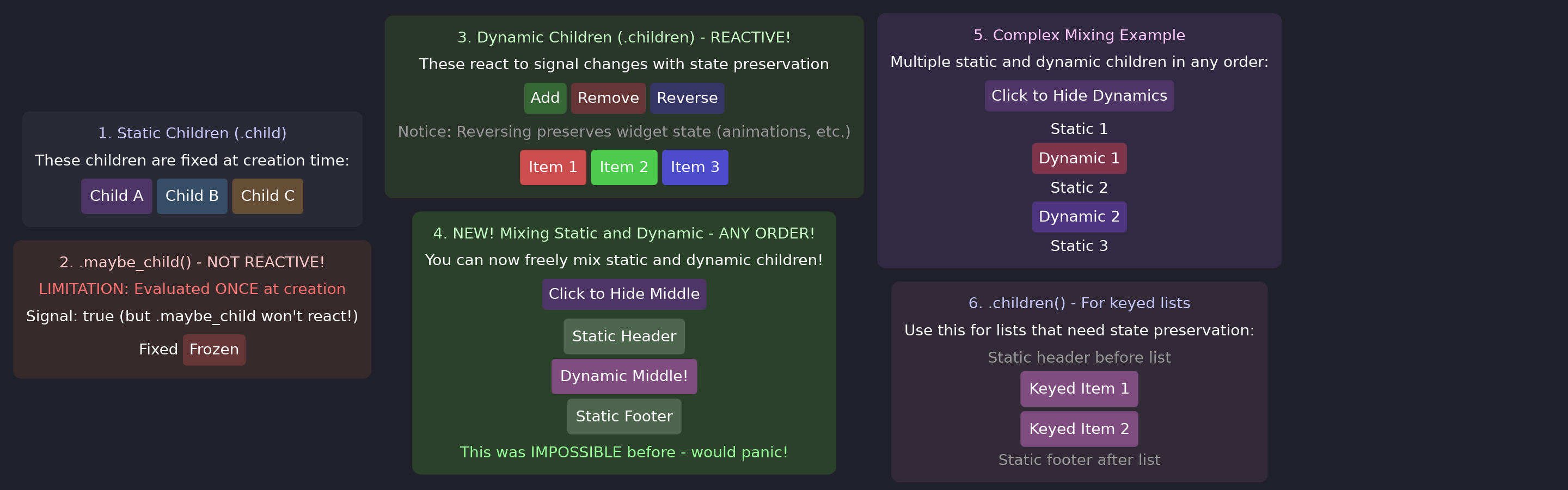

children_example

Dynamic children and child management patterns.

cargo run --example children_example

Features demonstrated:

• .child() for single children
• .children([...]) for multiple children
• .child(Option) for conditional rendering
• .children(keyed(..)) for reactive lists

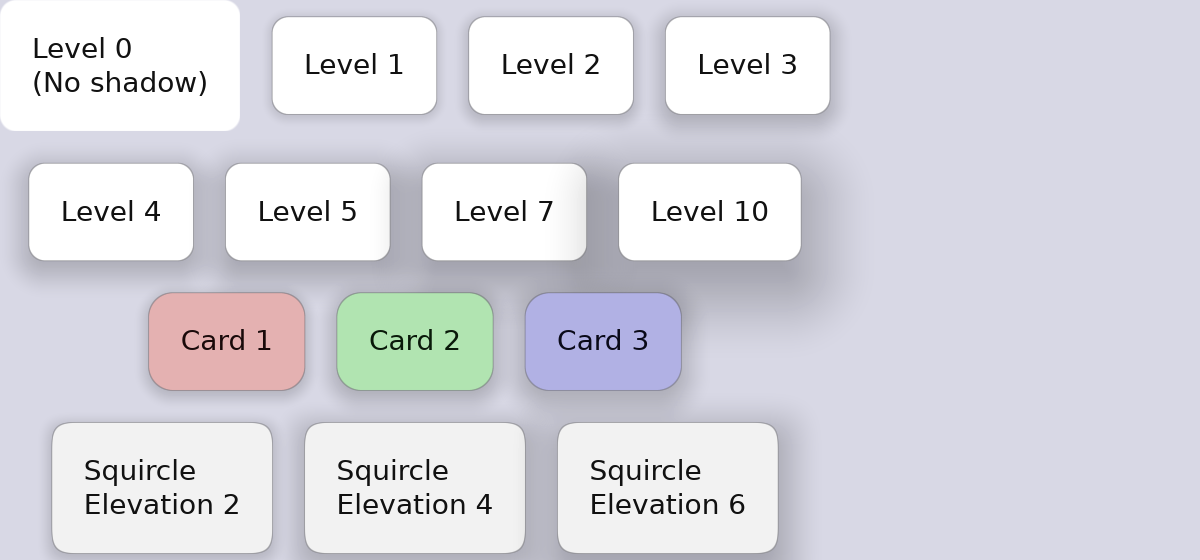

shadow_example

Every degree of freedom a Shadow has, and where a ladder of them lives.

cargo run --example shadow_example

Features demonstrated:

• A ladder of shadows defined by the application, as const values
• A shadow thrown sideways, a coloured one, and one with spread — none of which a single elevation number could ask for
• An inset glow, a control pressed in, and a tight shadow stacked over a soft one
• A hover that lifts a card, with the motion declared beside the value

image_example

Displaying raster and SVG images.

cargo run --example image_example

Features demonstrated:

• PNG/WebP raster images
• SVG vector images
• ContentFit modes (Contain, Cover, Fill)
• Images with transforms

scroll_example

Scrollable containers with customizable scrollbars.

cargo run --example scroll_example

Features demonstrated:

• Vertical and horizontal scrolling
• Custom scrollbar styling (colors, width, radius)
• Hidden scrollbars
• Kinetic/momentum scrolling

scroll_mixed_content

Advanced scrollable container with mixed content types.

cargo run --example scroll_mixed_content

Features demonstrated:

• Text widgets inside scrollable containers
• Text input widgets with form fields
• Raster and SVG images in scrollable content
• Interactive elements with hover states and ripples
• Vertical and horizontal scrolling together
• Scrollbar customization with different styles

multi_surface

Multiple surfaces with shared reactive state.

cargo run --example multi_surface

Features demonstrated:

• Creating multiple layer shell surfaces
• Shared reactive signals between surfaces
• Independent surface configuration

surface_properties_example

Dynamic surface property modification at runtime.

cargo run --example surface_properties_example

Features demonstrated:

• Changing layer at runtime
• Modifying keyboard interactivity
• Adjusting anchor and size dynamically

text_input_example

Text input widgets with editing capabilities.

cargo run --example text_input_example

Features demonstrated:

• Single and multiline text input
• Cursor and selection styling
• Placeholder text
• Focus states

Exploring the Code

Each example’s source code is in the examples/ directory. Reading through them is a great way to learn Guido patterns:

# View an example's source
cat examples/reactive_example.rs

Next Steps

After exploring the examples, dive deeper into the concepts:

• Core Concepts - Understand the reactive model
• Building UI - Master styling and layout
• Interactivity - Add hover states and events

service_example

Background services with automatic cleanup.

cargo run --example service_example

Features demonstrated:

• create_service for background threads
• Bidirectional communication with commands
• Read-only services for periodic updates
• Automatic cleanup when component unmounts
